Car Motorcycle Battery Tester YAWOA BM800 6V 12V 24V Voltage Charger Analyzer With Printing Function Charging Cricut Load Tools
BM800 Color Screen Car Battery Tester is designed with color screen and easy printer for better using experience. Adopting the advanced conductance testing technology, BM800 provides you with accurate testing results and prints it in seconds.
BM800 Battery Testery Supports Languages :
Russian, Portuguese, English, German, French, Spanish, Italian, Japanese, Polish, Chinese
Note : BM800 not only supports diagnosis in 10 languages, but also supports printing in 10 languages ( the other battery tester only support print English )
![](https://ae01.alicdn.com/kf/S2378f74a90524d259214fac432ed3570k.jpg)
BM800 Battery Tester Main Function :
1. Startup test:
* lf the starting voltage reading is greater than 9.6v ( for a 24V system, the reading is greater than16V ) , it means that the walking system is good.
* lf the starting voltage reading is less than 9.6v ( for a 24V system, the reading is less than 16V ), it means there is a problem with the starting system.
* Please check related parts such as connection points, wires and starters, and battery terminals forcorrosion.
2. Charging Test
* lf the voltage reading is greater than 15.0V ( for a 24V system, the reading is greater than 30.00-v ), please check the voltage regulator.
* lf the voltage reading is less than 13.3V ( for a 24V system, the reading is less than 26.60V), please check the connection points, wires and engine.
3. Battery Test
it is recommended to replace the Battery when the Battery life is less than 45%.
4. Loading Test
Check whether the battery has enough load capacity to run all electrical equipment such as playing car music etc.
This handy auto battery analyzer makes sure your summer road trips won’t end on a flat.
![](https://ae01.alicdn.com/kf/S32557aae3a6b480c92ede7b4b0c9efa3o.jpg)
BM800 has the advantage print Function :
1. BM800 Built-in Integrated Thermal Printer , it allows you to see battery information at a glance. Free three rolls of thermal paper. Simple operation, data visualization.
2. BM800 supports customize Printing Information, it can be used to differentiate between different vehicle test results.
For example, a car mechanic can enter the license plate number on the device, and then print the test results. There will be license plate number information on the printed paper to prevent the test results of different vehicles from being mixed.
![](https://ae01.alicdn.com/kf/S39586b27bcad4462954b1198d304ee5cO.jpg)

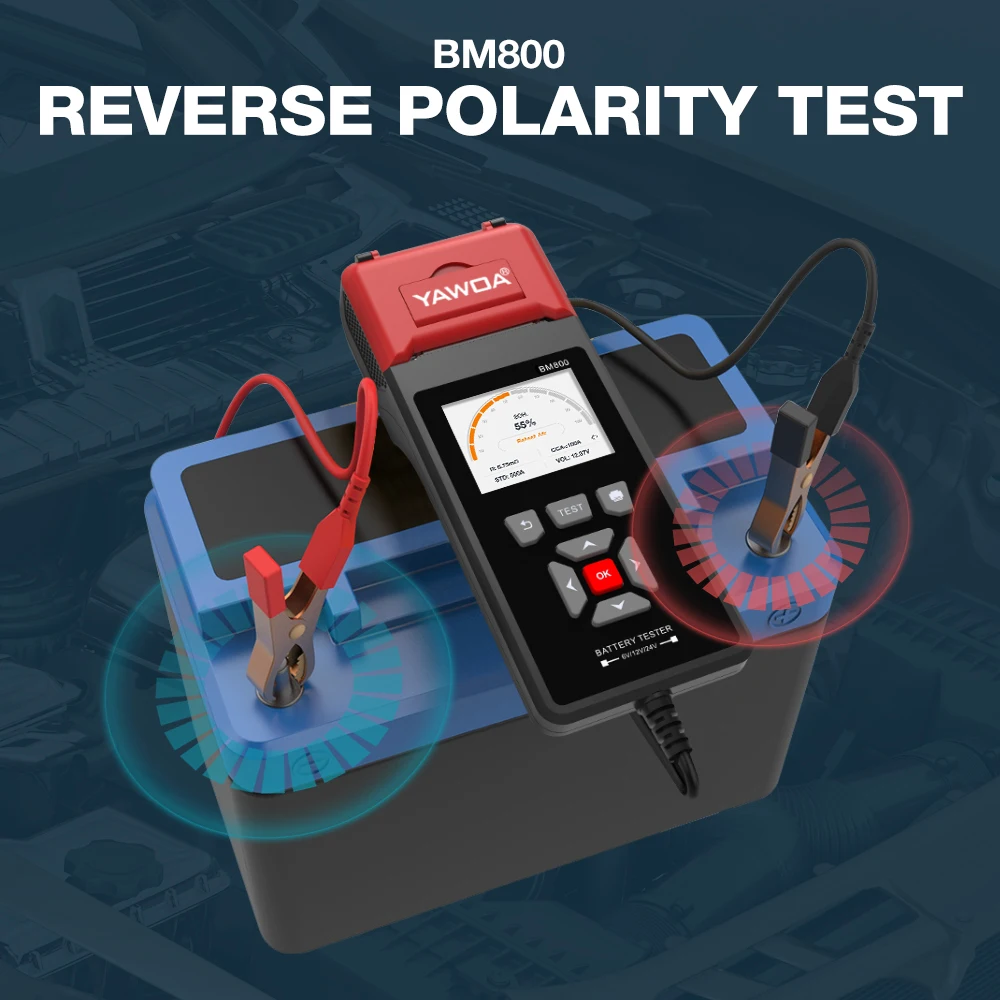

BM800 supports Reverse Polarity Test
BM800 does not distinguish between positive and negative poles. Even if the positive and negative poles are connected incorrectly, the diagnosis can be carried out normally, and the battery and equipment will not be damaged.
![](https://ae01.alicdn.com/kf/S4f60f4965b1c46578e32261d9eb133d3G.jpg)
BM800 supports Real-time Waveform Monitoring
Real-time display of voltage fluctuations, you can view the current, minimum, and maximum voltages.
1. Automatic Storage: Can store 10 waveform monitoring records.
2. Waveform Feedback: Can view saved waveform data.
3. One-click clear: Delete all saved waveform data.
![](https://ae01.alicdn.com/kf/S47639f1bb7f34b48930a1b1fd1ea4b39b.jpg)
BM800 supports Multimeter Function , can check SOH and SOC of the battery !
it is easy to let you know the statu of the battery !
![](https://ae01.alicdn.com/kf/S4b0df3193779440c8dc7302e85aac169Z.jpg)
BM800 Supports One-Click operation Function :
1. BM800 supports One-Click print Function
2. BM800 supports One-Click Test Function
3. BM800 supports One-Click back to Main menu Fuction ( Long press 3s the back button )
4. BM800 supports One-Click Screenshot ( Long press 3s the up and down keys )
![](https://ae01.alicdn.com/kf/S0dab25fa771544ed9b24e99d155b402fc.jpg)
BM800 support 6V Motorcycle,12V Car & 24V Duty Truck Battery
Multiple vehicle applications – passenger motorcycle, cars and duty trucks
![](https://ae01.alicdn.com/kf/Se3621f539fcd42d69b049417c83699c2d.jpg)
BM800 Support 5 Battery Types
* Tests batteries from rated from 100 to 2000CCA.
* BM800 Battery Analyzer is dedicatedly developed to test 6V & 12V& 24V regular flooded, AGM flat plate, AGM spiral and gel batteries and 12V & 24V starting and charging system. It provides a quick, easy and affordable solution for technicians to check battery health and detect faults of starting and charging system.
![](https://ae01.alicdn.com/kf/Scecdbc883df342eda0b090f5f457e959Z.jpg)
BM800 Measure Standard & Test Range
Geometry supports all current common battery standards, and a wide range of tests can meet your various needs.
● CCA (100 - 2000 )
● IEC (100 - 1400 )
● EN (100 - 2000 )
● DIN (100 - 1400 )
● CA (100 - 2000 )
● BCI (100 - 2000 )
● MCA (100 - 2000 )
● SAE (100 - 2000 )
● GB (2AH - 220AH ) Important breakthrough
● JIS (26A17 - 245H52 )
![](https://ae01.alicdn.com/kf/Sa19243c02a1b41dd9ef36df44697dd81d.jpg)
BM800 Battery Tester Supports Lifetime Free Update
Step 1 : Connect BM800 with computer via USB cable, it will shows the removable disk .
Step 2 : open the update website, find BM800 update : http://www.yawoa.com/plus/list.php?tid=17
Step 3 : Download the update file .
Step 4 : Copy the update file to the removable disk , it will be ok .
BM800 Specifications
Product Size: 8.86*3.54*1.69 inch
Screen Size: 2.8inch TFT color Screen
Connection Method: Alligator clips regardless of polarity
Test Range: 6V 12V 24V
Operating Voltage:4.9-32V
Operating Temperature : -20℃-50℃
Product Material: PVC Industrial Material
BM800 Battery Tester Packing List
1 x Battery Analyzer BM800 Main Unit
1 x User's Manual
1 x Carton Box
1 x USB Cable
3 x Thermal Paper (Noted: One of the volumes has been installed in the BM800 mainframe.)
