- Certification: CE
- Certification: FCC
- Certification: RoHS
- Origin: CN(Origin)
- Special Features: Bluetooth
- Software Version: Latest Version
- Software Update: Yes
- Hardware Version: V1.5
- Item Type: Code Readers & Scan Tools
- Item Function: OBD OBD2 Diagnostic Scanner Tool
- Item Name: ELM327 V1.5 Bluetooth 4.0 Code Reader
- Feature: OBD OBD2 BT4.0 Scanner
- Operating Systems: For Android/IOS
- Special Function: Read/Clear Fault Code
- Support model: Most of OBDII vehicle models
- Features: Bluetooth 4.0 OBDII Car Diagnostic Scanner
- Software platform: Support for iOS/Android /Windows
- Special Features: Bluetooth 4.0
- Working humidity: less than 60%
- Main control chip: MM32L073
- Oscillator frequency: 24mhz
ELM327 V1.5 Bluetooth 4.0 ELM 327 OBD2 Scanner Diagnostic Adapter Scan Tool OBD OBDII Code Reader For iOS Android Windows
ELM327 V1.5 BT4.0 is mainly used to read the data of car engine and emissions, diagnostic car engine trouble, and erase trouble codes. It is small size, highest chip integration, Passed CE, FCC, and RoHS certification.
ELM327 V1.5 BT4.0 Functions:
Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
Clear the error codes and turn off the MIL ("Check Engine" indicator)
Displays current sensor data, including:
Engine speed per minute (RPM)
Calculated load value
Coolant temperature
Fuel system status
Vehicle speed
Short-term fuel condition
Long-term fuel condition
Intake manifold pressure
Injection advance time
Intake air temperature
Air Flow Rate
Absolute throttle position
Oxygen probe voltage associated with short-term fuel status
Fuel system status
Fuel pressure
There are many other data available for fuel consumption monitoring ...
Software Platforms.
1. Compatible software
Window versions: ScanMaster-ELM, ScanTool.net, PCMSCAN, etc.
Android version: Torque, DashCommand, OBD Car Doctor, Auto Doctor, Mini OBDII, EOBD, etc.
Symbian version: OBDScope. 2.
2. Compatible Platforms
Software support platform: Windows XP, Windows 7/8/10, Android, Symbian, etc.
Support Protocol:
SAE J1850 PWM (41.6 Kbaud)
SAE J1850 VPD (10.4 Kbaud)
ISO 9141-2(5 baud init,10.4 Kbaud)
ISO 14230-4 KWP ( 5 baud init,10.4 Kbaud)
ISO 14230-4 KWP （fast init,10.4 Kbaud）
ISO 15765-4 CAN (11bit ID,500 Kbaud)
ISO 15765-4 CAN (29bit ID,500 Kbaud)
ISO 15765-4 CAN (11bit ID,250 Kbaud)
ISO 15765-4 CAN (29bit ID,250 Kbaud)

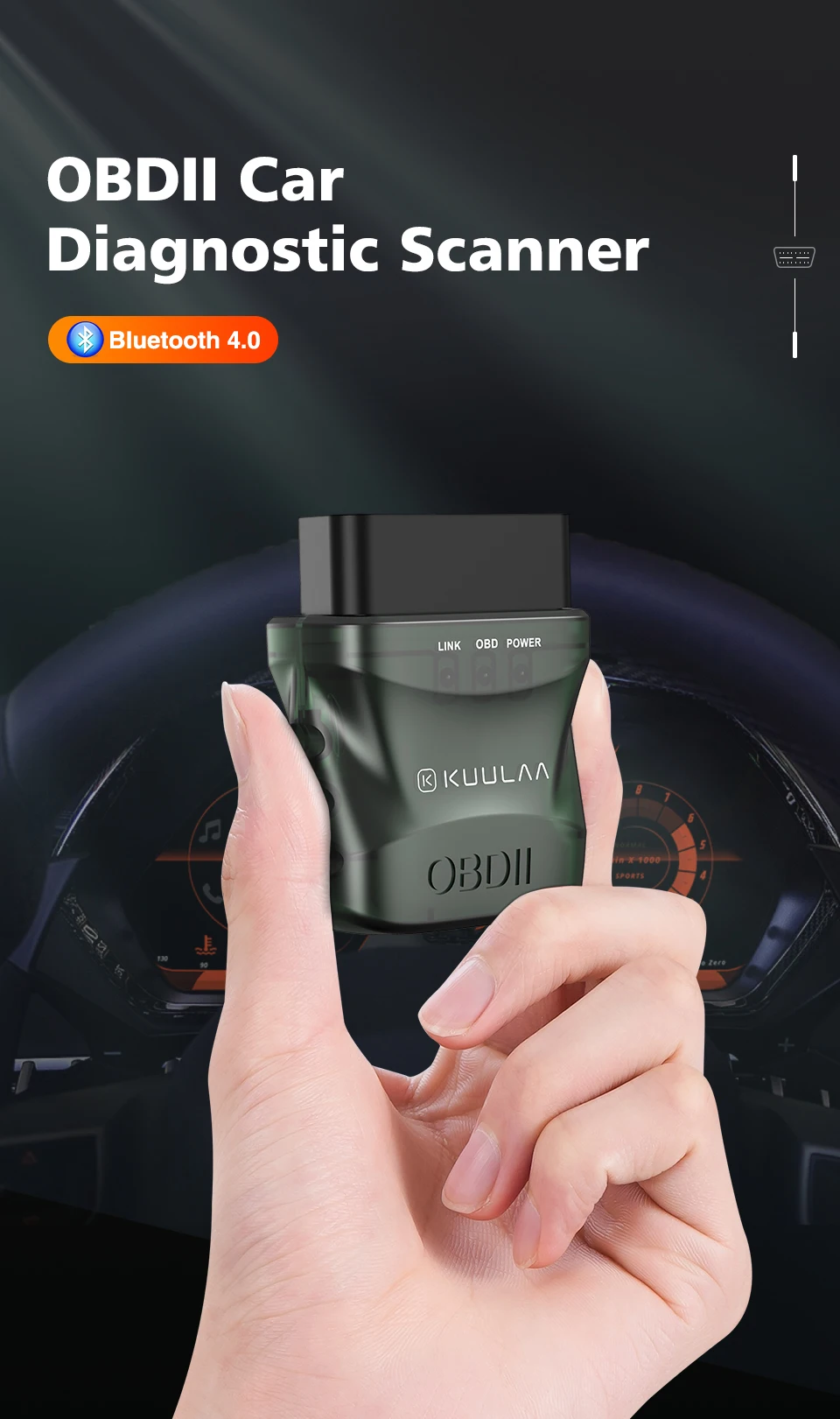

Bluetooth 4.0 OBDII Car Diagnostic Scanner
Diagnose Engine Trouble Code
Clear Engine Trouble Code
Car Information Reading
Work After Connect Car
Supports Almost Kinds Of Cars
Small & Convenient
Product Function
Dashboard Live Date All Sensors
Diagnostic Trouble Codes Freeze Frame
Noncontinuous Monitors Acceleration Tests
Emission Tests Data Recording
Are you experiencing these problems?
New driver
4s shops are expensive to maintain
Check for breakdowns before traveling

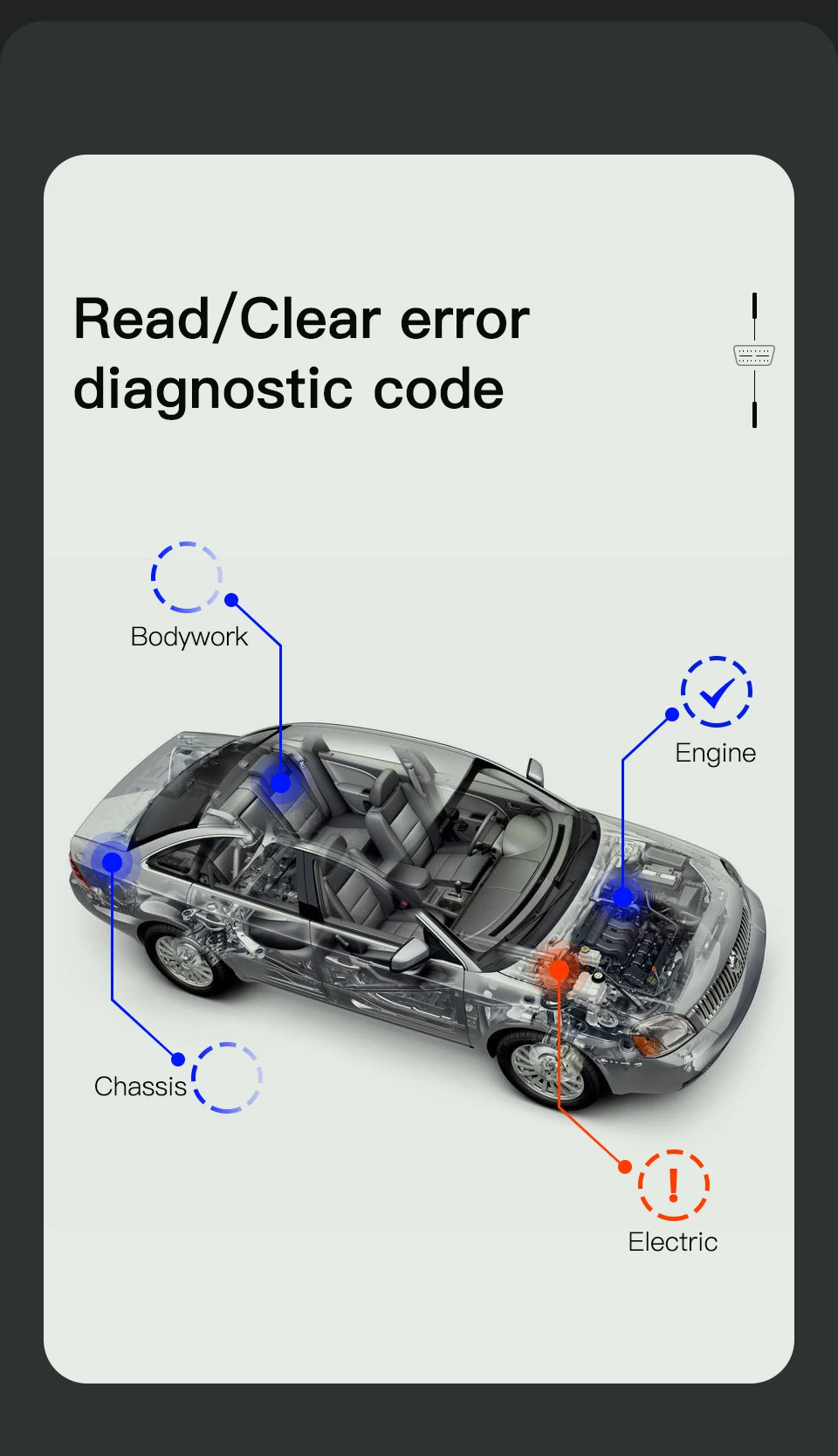

Read/Clear error diagnostic code
Engine
Electric
Bodywork
Chassis
Diagnosis vehicle health
Real-time monitor vehicle ,display the diagnostic values of various vehicle.（Database has more than 3000 code definitions)
Read error diagnostic code
Clear error code
Display engine revolutions
Coolant temperature
Fuel system status
Short-term fuel condition
Fuel pressure
Long-term fuel situation
Intake manifold pressure
Fuel injection advance time
Air temperature
Air velocity
Fuel system status
Fuel consumption monitoring etc.
Detect fuel consumption and mileage
Real-time display of vehicle fuel quantity, vehicle speed, rotation speed, mileage, temperature, air pressure and other data, master all vehicle data
Bluetooth-mobile phone connection
Support ios/Android/Windows...turn on the bluetooth of mobile phone, search for OBDII and use it
*Download APP is required
Link location of OBD interface
Most of the connectors are under the dashboard.（Check the vehicle manual, if don't find.）
Area A: VW、 Ford、Toyota、Hyundai、 Citroen、 BMW、etc./Most cars.
Area B: Honda, Lexus,etc.
Area C: Dongfeng Citroen,etc.
Area D/E : A few cars...

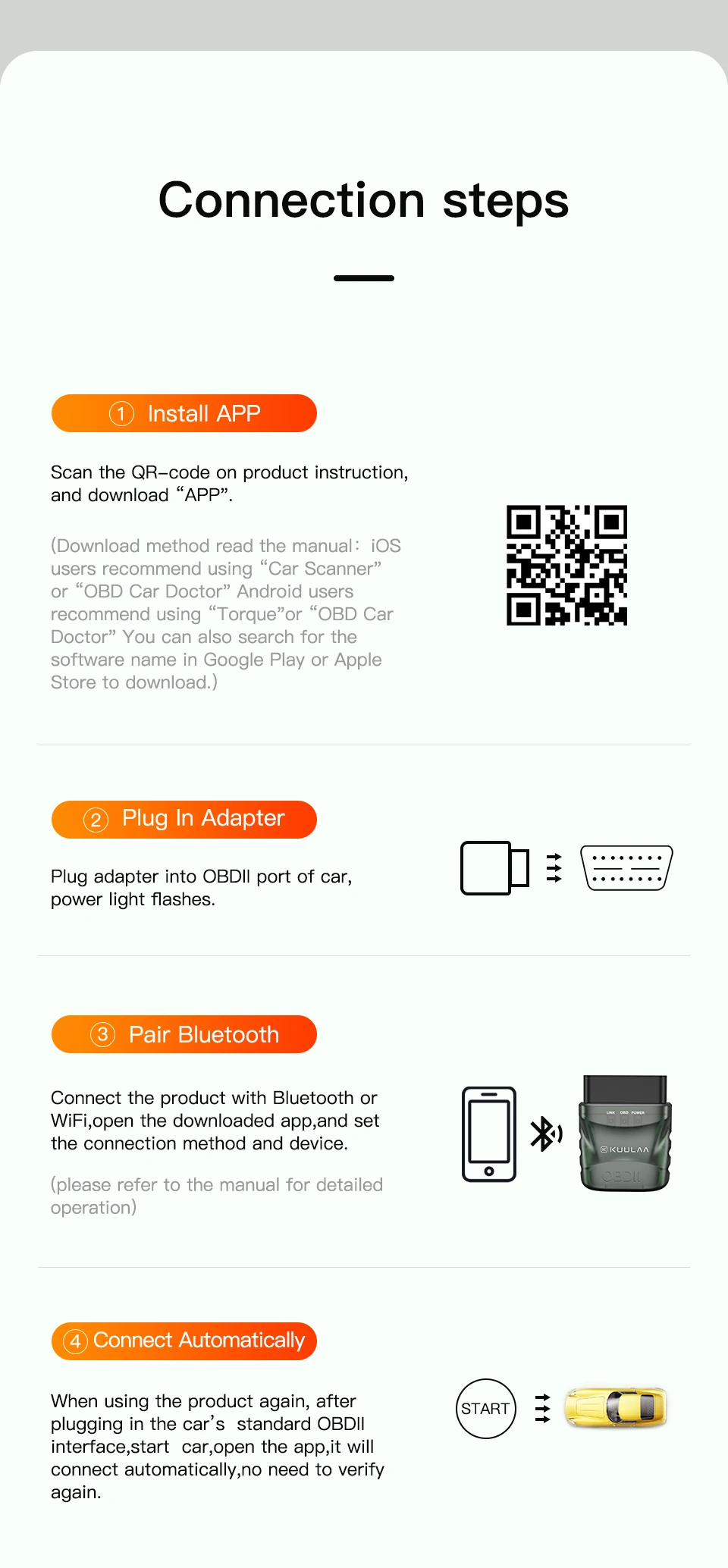

Connection steps
1 Install APP :
Scan the QR-code on product instruction，and download "APP".（Download method read the manual：iOS users recommend using "Car Scanner" or "OBD Car Doctor" Android users recommend using"Torque" or "OBD Car Doctor"You can also search for the software name in Google Play or Apple Store to download.）
2 Plug In Adapter:
Plug adapter into OBDII port of car,power light flashes.
3 Pair Bluetooth:
Connect the product with Bluetooth or WiFi,open the downloaded app,and set the connection method and device.（please refer to the manual for detailed operation)
4 Connect Automatically:
When using the product again, after plugging in the car’s standard OBDII interface,start car,open the app,it will connect automatically,no need to verify again.

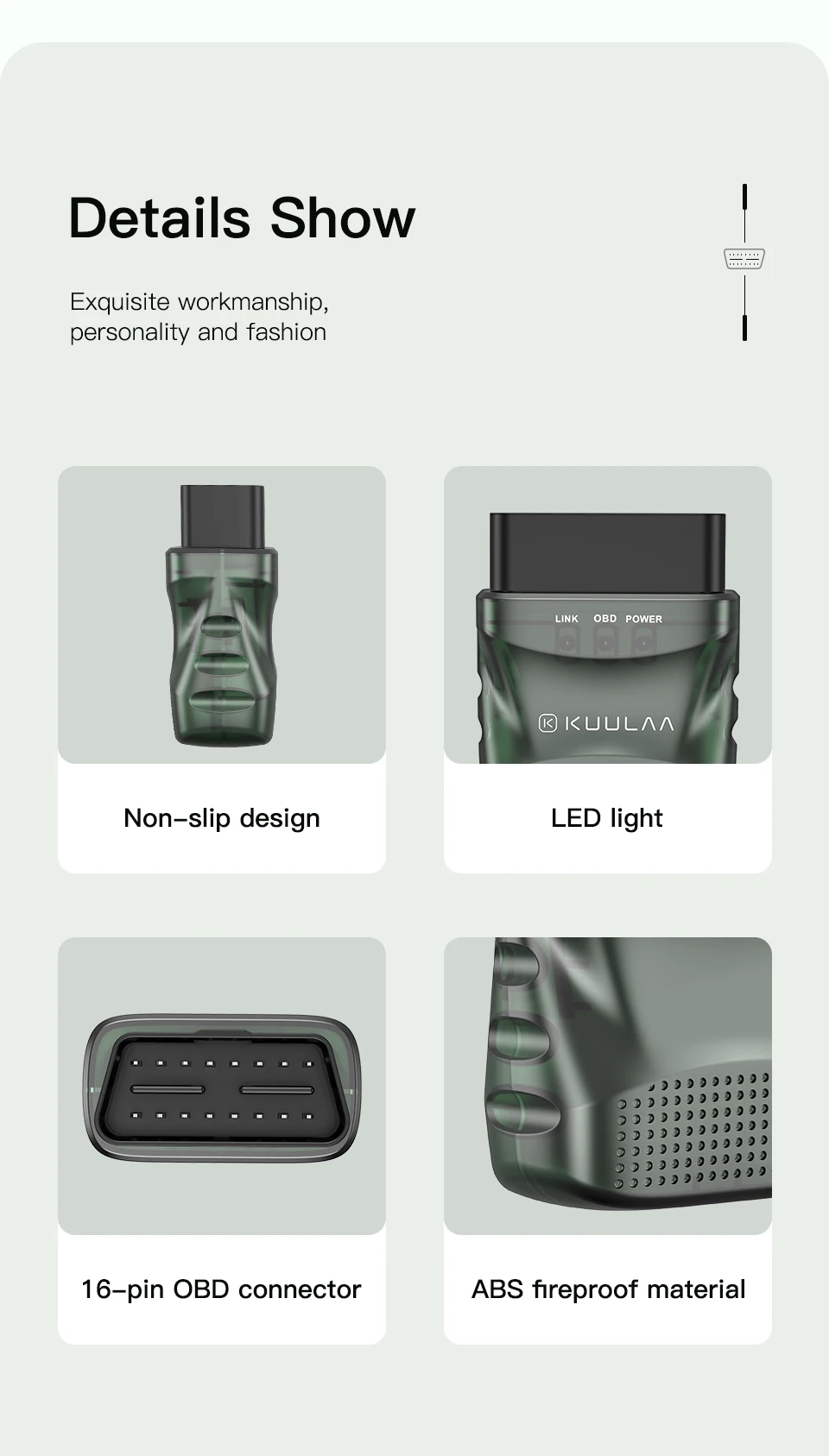

Details Show
Exquisite workmanship, personality and fashion
Non-slip design
Bottom LED light
16-pin OBD connector
ABS fireproof material

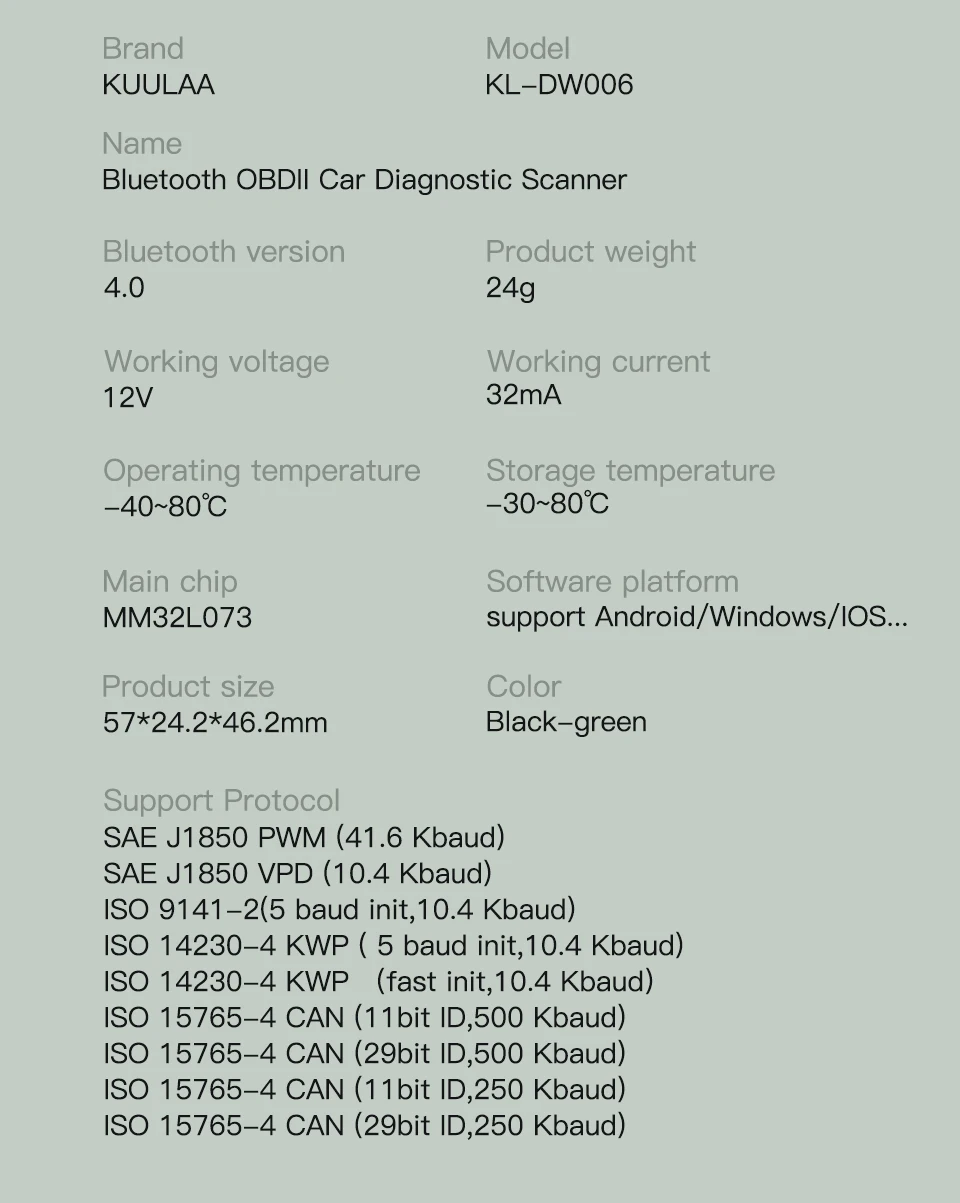

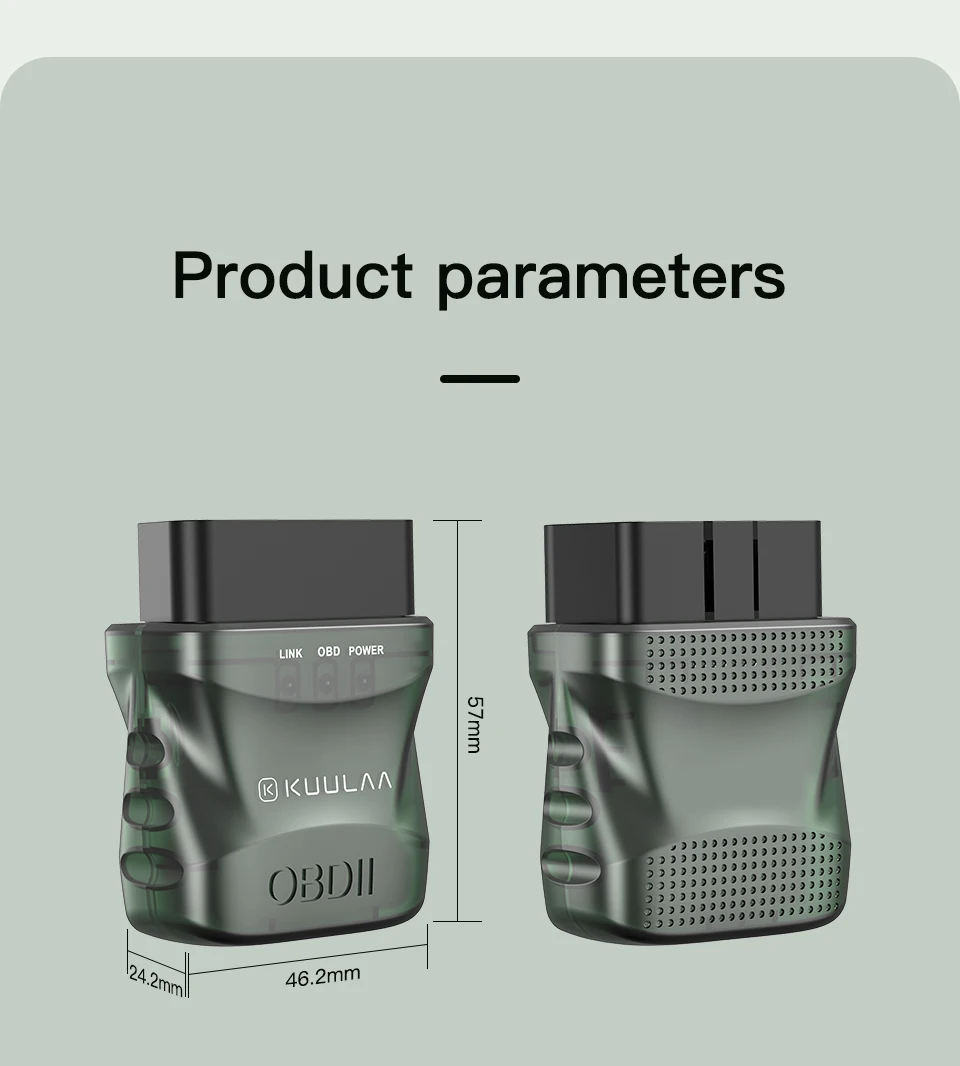

Product parameters
Name:Bluebooth OBDII Car Diagnostic Scanner
Model:KL-DW006
Bluetooth version:4.0
Working voltage:12V
Working current:32mA
Operating temperature:-40~80℃
Storage temperature:-30~80℃
Main chip: mm32l073
Software platform:support Android/Windows/IOS...
Product weight:24g
Product size:57*24.2*46.2mm
Color:Black-green

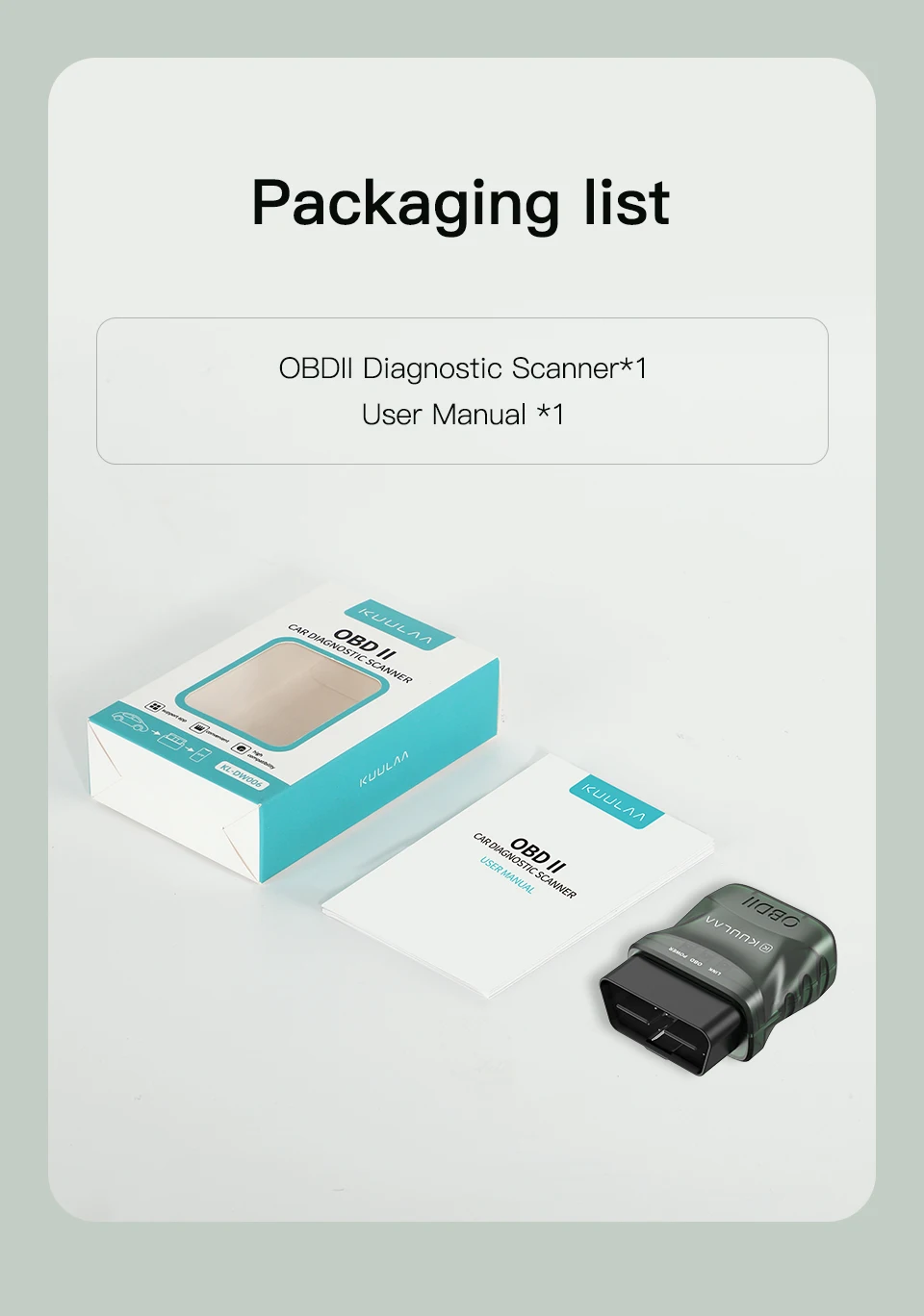

Package Included:1x Auto Scanner
